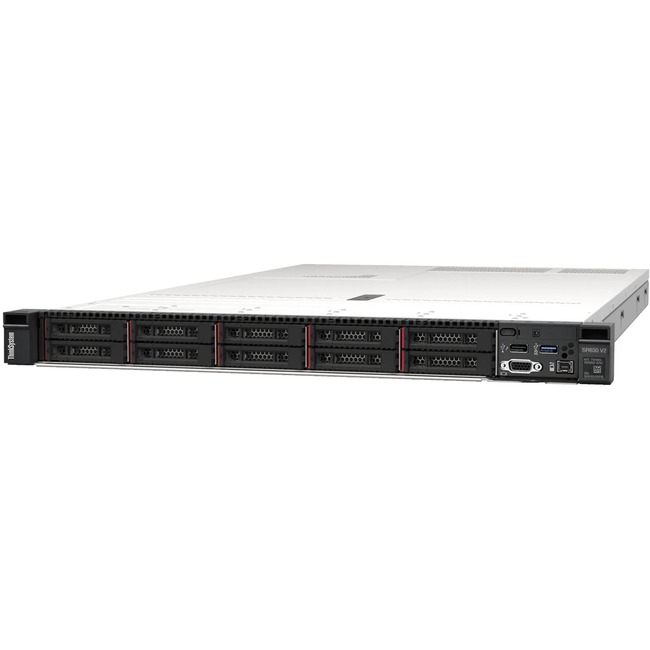

Lenovo 7Z71A04WNA ThinkSystem SR630 V2 1U Rack Server – 1 x Intel Xeon Silver 4314 2.40 GHz – 32 GB RAM – Serial ATA/600, 12Gb/s SAS Controller

Key Features Manufacturer Part Number: 7Z71A04WNA Number of Processors Supported: 2 Number of Processors Installed: 1 Processor Manufacturer: Intel Processor Type: Xeon Silver Processor Model: 4314 Processor Core: Hexadeca-core (16 Core) Processor Speed: 2.40 GHz Cache: 24 MB Chipset Manufacturer: Intel Chipset Model: C621A Standard Memory: 32 GB Maximum Memory Supported: 8 TB Memory Technology: TruDDR4 Memory Clock Speed: 3.20 GHz Number of Total Memory Slots: 32 Number of Occupied Memory Slots: 1 Intel Optane Memory Ready: Yes Memory Form Factor: RDIMM Error Checking: ECC Signal Processing: Registered (Buffered) Total Hard Drive Capacity: No Optical Drive Type: No Controller Type: Serial ATA/600 12Gb/s SAS Controller Model: Intel RSTe RAID RAID Supported: Yes RAID Levels: 0, 1, 5, 10, JBOD Hot Swappable Bays: Yes Graphics Controller Manufacturer: Matrox Graphics Controller Model: G200 Graphics Memory Capacity: Up to 16 MB Ethernet Technology: Gigabit Ethernet Total Number of USB Ports: 6 Number of USB 2.0 Ports: 1 Network (RJ-45): Yes Number of Network (RJ-45) Ports: 1 VGA: Yes Remote Management: Yes Remote Management Controller: XClarity Controller (XCC) Enterprise Operating System Supported: Windows Server 2016 Windows Server 2019 Windows Server 2022 Red Hat Enterprise Linux 7.9 Red Hat Enterprise Linux 8.2 Red Hat Enterprise Linux 8.3 Red Hat Enterprise Linux 8.4 Red Hat Enterprise Linux 8.5 SUSE Linux Enterprise Server 12 SP5 SUSE Linux Enterprise Server 15 SP2 SUSE Linux Enterprise Server 15 SP3 VMware ESXi 6.7 U3 VMware ESXi 7.0 U2 VMware ESXi 7.0 U3 Operating System: No Input Voltage: 120 V AC 230 V AC Number of Power Supplies Supported: 2 Number of Power Supplies Installed: 1 Plug/Connector Type: C13/C14 Maximum Power Supply Wattage: 750 W Hot Swappable Power Supply: Yes Security Features: Chassis Intrusion Switch Power-on Password Administrator’s Password Trusted Platform Module (TPM), supporting TPM 2.0 Energy Star: Yes Environmentally Friendly: Yes Environmental Certification: ENERGY STAR 3.0 RoHS EPEAT Bronze CELP GREENGUARD CECP Form Factor: Rack Rack Height: 1U Height: 1.7″ Width: 17.3″ Depth: 30.4″ Weight (Approximate): 57.98 lb Limited Warranty: 3 Year General Information Manufacturer: Lenovo Group Limited Manufacturer Part Number: 7Z71A04WNA Manufacturer Website Address: http://www.lenovo.com/us/en/ Brand Name: Lenovo Product Line: ThinkSystem Product Series: SR630 V2 Product Model: 7Z71A04WNA Product Name: ThinkSystem SR630 V2 7Z71A04WNA Server Product Type: Server Processor Number of Processors Supported: 2 Number of Processors Installed: 1 Processor Manufacturer: Intel Processor Type: Xeon Silver Processor Model: 4314 Processor Core: Hexadeca-core (16 Core) Processor Speed: 2.40 GHz Cache: 24 MB Chipset Chipset Manufacturer: Intel Chipset Model: C621A Memory Standard Memory: 32 GB Maximum Memory Supported: 8 TB Memory Technology: TruDDR4 Memory Clock Speed: 3.20 GHz Number of Total Memory Slots: 32 Number of Occupied Memory Slots: 1 Intel Optane Memory Ready: Yes Memory Form Factor: RDIMM Error Checking: ECC Signal Processing: Registered (Buffered) Storage Total Hard Drive Capacity: No Optical Drive Type: No Controllers Controller Type: Serial ATA/600 12Gb/s SAS Controller Model: Intel RSTe RAID RAID Supported: Yes RAID Levels: 0, 1, 5, 10, JBOD I/O Expansions Hot Swappable Bays: Yes Display & Graphics Graphics Controller Manufacturer: Matrox Graphics Controller Model: G200 Graphics Memory Capacity: Up to 16 MB Network & Communication Ethernet Technology: Gigabit Ethernet Interfaces/Ports Total Number of USB Ports: 6 Number of USB 2.0 Ports: 1 Network (RJ-45): Yes Number of Network (RJ-45) Ports: 1 VGA: Yes Remote Management: Yes Remote Management Controller: XClarity Controller (XCC) Enterprise Software Operating System Supported: Windows Server 2016 Windows Server 2019 Windows Server 2022 Red Hat Enterprise Linux 7.9 Red Hat Enterprise Linux 8.2 Red Hat Enterprise Linux 8.3 Red Hat Enterprise Linux 8.4 Red Hat Enterprise Linux 8.5 SUSE Linux Enterprise Server 12 SP5 SUSE Linux Enterprise Server 15 SP2 SUSE Linux Enterprise Server 15 SP3 VMware ESXi 6.7 U3 VMware ESXi 7.0 U2 VMware ESXi 7.0 U3 Operating System: No Power Description Input Voltage: 120 V AC 230 V AC Number of Power Supplies Supported: 2 Number of Power Supplies Installed: 1 Plug/Connector Type: C13/C14 Maximum Power Supply Wattage: 750 W Hot Swappable Power Supply: Yes Miscellaneous Security Features: Chassis Intrusion Switch Power-on Password Administrator’s Password Trusted Platform Module (TPM), supporting TPM 2.0 Energy Star: Yes Environmentally Friendly: Yes Environmental Certification: ENERGY STAR 3.0 RoHS EPEAT Bronze CELP GREENGUARD CECP Physical Characteristics Form Factor: Rack Rack Height: 1U Height: 1.7″ Width: 17.3″ Depth: 30.4″ Weight (Approximate): 57.98 lb Warranty Limited Warranty: 3 Year Additional information Weight 58 lbs Dimensions 2 × 30 × 17 in Condition New MPN 7Z71A04WNA Product Type Server Processor Core Hexadeca-core (16 Core) Environmentally Yes Processor Manufacturer Intel Number of Total Memory 32 Optical Drive Type No Number of Processors 1 Total Hard Drive No RAID Supported Yes Ethernet Technology Gigabit Ethernet Maximum Power Supply 750 W Product Family ThinkSystem SR630 V2 Energy Star Yes Processor Model 4314 Memory Technology TruDDR4 Operating System No Chipset Intel C621A Rack Height 1U Brand Lenovo Form Factor Rack Processor Speed 2.40 GHz Processor Type Xeon Silver RAID Levels 0, 1, 10, 5, JBOD Controller Type 12Gb/s SAS Maximum Memory 8 TB Limited Warranty 3 Year Standard Memory 32 GB
