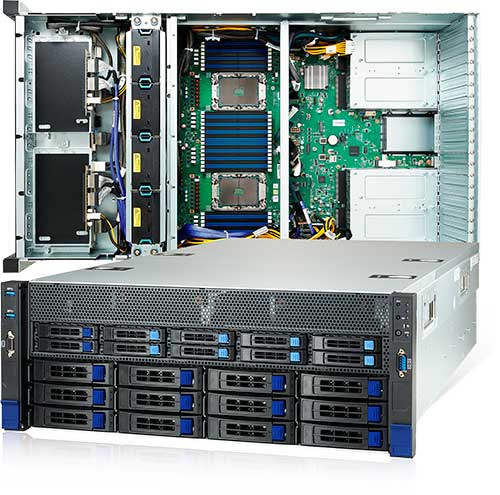

TYAN FT83AB7129 B7129F83AV14E8HR-N Xeon GPU Server

System Form Factor 4U Rackmount Chassis Model FT83 Dimension (D x W x H) 32.68″ x 17.26″ x 6.9″ (830 x 438.4 x 176mm) Motherboard Name S7129GMRE# Motherboard Notification # The motherboard not sold separately Gross Weight 46 kg (101.4 lbs) Net weight 39.3 kg (86.6 lbs) Front Panel Buttons (1) UID / (1) PWR w/ LED / (1) RST LEDs (1) HDD / (1) ID / (1) System Event / (2) LAN activity I/O Ports (2) USB 3.0 ports / (1) COM Port / (1) VGA port External Drive Bay Q’ty / Type (2) 2.5″ Hot-Swap HDD/SSDs / (8) NVMe / (12) 3.5″ Hot-Swap HDD/SSDs Front Drive Bay Interface (2) SATA 6Gb/s / (8) NVMe / (12) SATA 6Gb/s / SAS 12Gb/s Front HDD Backplane Support NVMe / SATA 6Gb/s System Cooling Configuration FAN (8) hot-swappable 8cm fans Power Supply Type RPSU Input Range AC 100-127V/12A / AC 200-240V/9.48A Frequency 50-60 Hz Output Watts 4,800Watts Efficiency 80 plus Platinum Redundancy 3+1 Processor Q’ty / Socket Type (2) LGA4189 Supported CPU Series 3rd Gen Intel Xeon Scalable Processor Thermal Design Power Wattage Max up to 270W (TDP) System Bus Up to 11.2/10.4 GT/s with Intel UltraPath Interconnect (UPI) support Chipset PCH Intel C621A Switch IC (2) PLX PEX88096 CPU-GPU Link Topology Dual-root All GPU connected to CPUs evenly Memory Supported DIMM Qty (16)+(16) DIMM slots DIMM Type / Speed DDR4 ECC RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 3200 Capacity Up to 4,096GB RDIMM/ 8,192GB LRDIMM/ 8,192GB RDIMM 3DS/LRDIMM 3DS *Follow latest Intel DDR4 Memory POR Memory channel 8 Channels per CPU / 2 DIMM slots per Channel Memory voltage 1.2V Expansion Slots PCIe (1) PCIe Gen.4 x16 slot (FH/HL) / (10) PCIe Gen.4 x16 (FH/10.5″L/DW ) Pre-installed TYAN Riser Card (PCIe Gen.3) (2) M7129F83A-L16 riser card for (2) PCIe Gen.4 x16 slots (left) Pre-installed TYAN Mezz. Card (PCIe Gen.3) (1) M7129F83A-RIO Others (1) PCIe Gen.4 x16 OCP 3.0 slot for mezz. w/ pull tab Physical Dimension Abbreviation FH/FL (Full-height / Full-length): 4.4″ x 12.3″ (111.2 x 312mm) LAN Q’ty / Port (1) GbE dedicated for IPMI PHY Realtek RTL8211E Storage SATA Connector (3) SFF-8643 for (12) front SATA drives Controller Intel C621A Speed 6Gb/s RAID RAID 0/1/10/5 (Intel RSTe) Stotage sSATA RAID RAID 0/1 (Intel RSTe) Storage NVMe Connector (M.2) (1) 2280 (by PCIe 3.0 x4) M.2 slot on MB / (1) 2280 (by PCIe 4.0 x2) M.2 slot on PCIe I/O board Connector (U.2) (2) SFF-8654 for (4) NVMe ports Graphic Connector type D-Sub 15-pin Resolution Up to 1920×1200 Chipset Aspeed AST2600 I/O Ports USB (2) USB3.0 ports (@ front) / (2) USB3.0 ports (@ rear) COM (1) DB-9 COM port VGA (1) D-Sub 15-pin port RJ-45 (1) GbE port dedicated for IPMI TPM (Optional) TPM Support Please refer to our TPM supported list. System Monitoring Chipset Aspeed AST2600 Temperature Monitors temperature for CPU & memory & system environment Voltage Monitors voltage for CPU, memory, chipset & power supply LED Over temperature warning indicator / Fan & PSU fail LED indicator Others Watchdog timer support Server Management Onboard Chipset Onboard Aspeed AST2600 AST2600 iKVM Feature 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub AST2600 IPMI Feature IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface BIOS Brand / ROM size AMI / 32MB Feature Hardware Monitor / Boot from USB device/PXE via LAN/Storage / Console Redirection / User Configurable FAN PWM Duty Cycle / SMBIOS 3.0/PnP/Wake on LAN / ACPI 6.1 / ACPI sleeping states S4,S5 Operating System OS supported list Please refer to our AVL support lists. Regulation FCC (SDoC) Class A CE (DoC) Class A CB/LVD Yes VCCI Class A C-Tick Class A Operating Environment Operating Temp. 10° C ~ 35° C (50° F~ 95° F) Non-operating Temp. – 40° C ~ 70° C (-40° F ~ 158° F) In/Non-operating Humidity 90 90%, non-condensing at 35° C Package Contains Barebone (1) FT83A-B7129 Barebone Manual (1) Quick Installation Guide RoHS RoHS 6/6 Compliant Yes Additional information Weight 90 lbs Dimensions 25.59 × 17.24 × 6.9 in Product Type Barebone System GPU Compatibility NVIDIA A10 24GB PCI-E, NVIDIA A100 80GB PCI-E, NVIDIA A16 64GB PCI-E, NVIDIA A2 16GB PCI-E, NVIDIA A30 24GB PCI-E, NVIDIA A40 48GB PCI-E, NVIDIA A4000 16GB PCI-E, NVIDIA A5000 24GB PCI-E, NVIDIA A6000 48GB PCI-E Max GPU 10
